Ubiquiti airMAX M5 Sector Antenna 16dBi 120 Degree
  Zoom

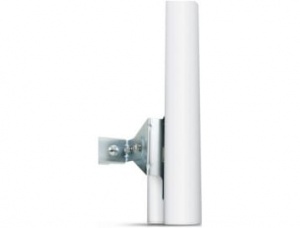

Ubiquiti airMAX M5 Sector Antenna 16dBi 120 Degree

SKU:  AM-5G16-120
Brand:  Ubiquiti

Your Price:  £85.00(£102.00 Inc. VAT)

The Ubiquiti airMAX Sector Antenna 16dbi 120 Degree is often used in short range installation within WISP networks to connect client devices back to the main the network. This sector has a wide 120 Deg' beam to cover a larger, with only 16dBi gain this is best used in close range.

To get the best from this sector we recommend using the Rocket M5 in order to achieve the most reliable PTMP Links.

World Class Antenna Designs:

    Next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with AirMax BaseStation Sectors:

    Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

    Frequency Range: 5.10-5.85 GHz
    Gain: 15-16 dBi
    Polarization: Dual Linear
    Cross-Pol Isolation: 22dB min
    Max VSWR: 1.5:1
    Hpol Beamwidth (6dB): 137 deg.
    Vpol Beamwidth (6db): 118 deg.
    Elevation Beamwidth: 8 deg.
    Electrical Downtilt: 4 deg.
    ETSI Specification: EN302 326 DN2
    Dimensions: 367x63x41mm
    Weight: 1.1Kgr
    Windloading: 120mph
